| Model | Model Type: | PT WIFI Camera |
| Model No. | ||
| System | System structure | Embedded RTOS design, dual-core 32-bit DSP NT98566, pure hard compression, watchdog |
| Video | Sensor | 8million 1/2.7 "sc501ai High Performance CMOS sensor; color 0 001Lux@F1.2 , black and white 0 0001Lux@F1.2 |
| Video processing | H. 265ai encoding, dual bitstream, avi format; Code stream 0.1m~8mpbs adjustable; Frame rate 1~30 frames / s adjustable | |
| Image output | Main code stream: 8mp 3840* 2160@12fps ； Sub code stream: 640* 360@12fps | |
| Shutter | 1/50(1/60)to 1/10000 of a second | |
| Noise reduction | 2 d / 3 d noise reduction | |
| Wide dynamic | Digital-wide dynamic | |
| Lens | 3.6mm hd lens | |
| Night vision | IR-CUT，Infrared night vision, color filter automatically switch | |
| light distance | Infrared 30m, white light 20m (6 white light,6 infrared light) | |
| Audio | Audio processing | G.711A Codec standard，two way audio，audio and video synchronization |
| Audio interface | -33DB high sensitive MIC,8 euro 1 watt high quality waterproof speaker | |

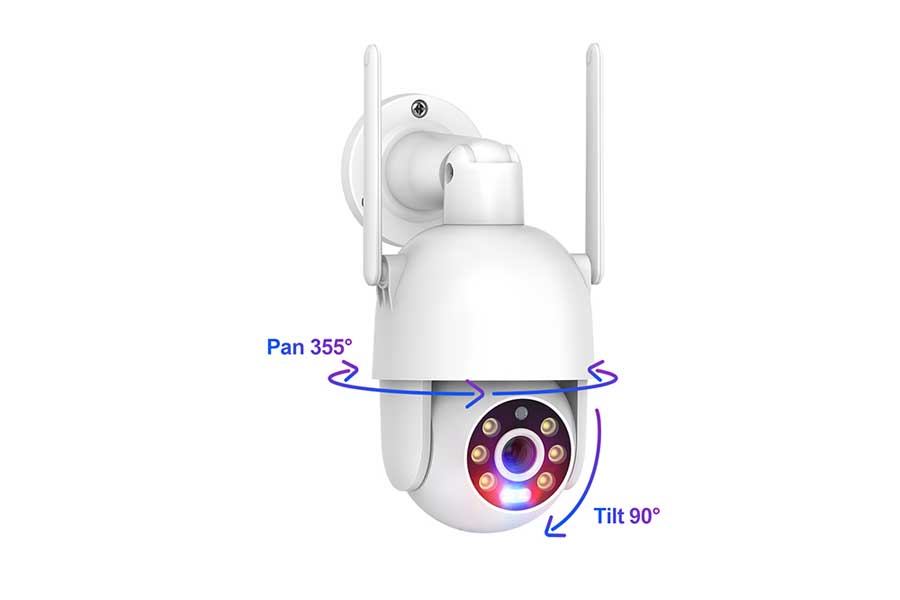

| PTZ | pan 355 degree，tilt 90 degree | |
| Human tracking, guard position | ||
| Network | Network interface | One RJ45 Ethernet port,10/100M auto-sensing，supports network protocols such as RTSP, FTP, DHCP, NTP, and UPnP |
| WIFI antenna interface | 2.4g dual WIFI antenna | |
| Alarm | Human detection, motion detection, smart AI alarm | |
| APP push, voice alarm, video recording, capture pictures | ||
| High power red and blue light alarm | ||
| Video | Video mode | Timing video, event video |
| Playback mode | Event playback, time playback | |
| Storage | Storage | Local TF card, up to 128G; Cloud storage |
| Other | Reliability | Comprehensive lightning protection，7*24 hours 65℃ high temperature test is stable and reliable |
| ONVIF | support | |
| Cell phone monitoring | Mobile phone monitoring (iOS, Android) | |
| power | DC12V/2A | |
| Material | ABS | |
| Reset | Support one-button reset function | |
| Work environment | Temperature | -20℃ to +55℃ |
| Humidity | 30% to 80% RH |
