| Model | Parameter |

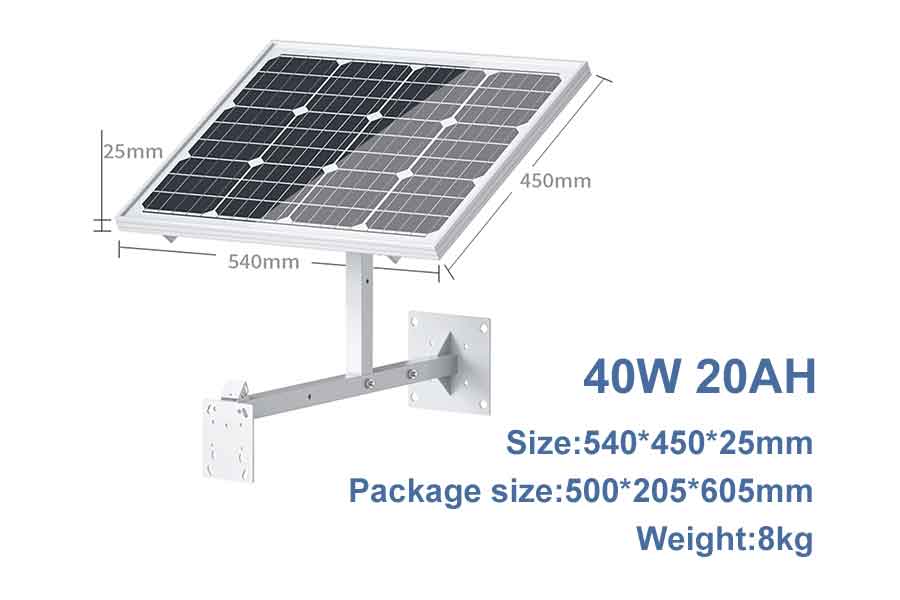

| 40W 20A | A brand new A-grade monocrystalline silicon panel with a power output of 10W/hour higher than the market for national power plants. It is a right angle monocrystalline panel with a peak voltage of 18V-22V, an anodized aluminum frame, a waterproof rating of IP66, and a 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/5A, peak charging current 1.75A, paired with aluminum alloy battery waterproof box, and equipped with voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| PWM controller: maximum rated current of 5 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| 20Ah lithium battery with a full load power consumption of 240 watts can provide power for firearms and 2.5-inch ball players for 2 days. | |

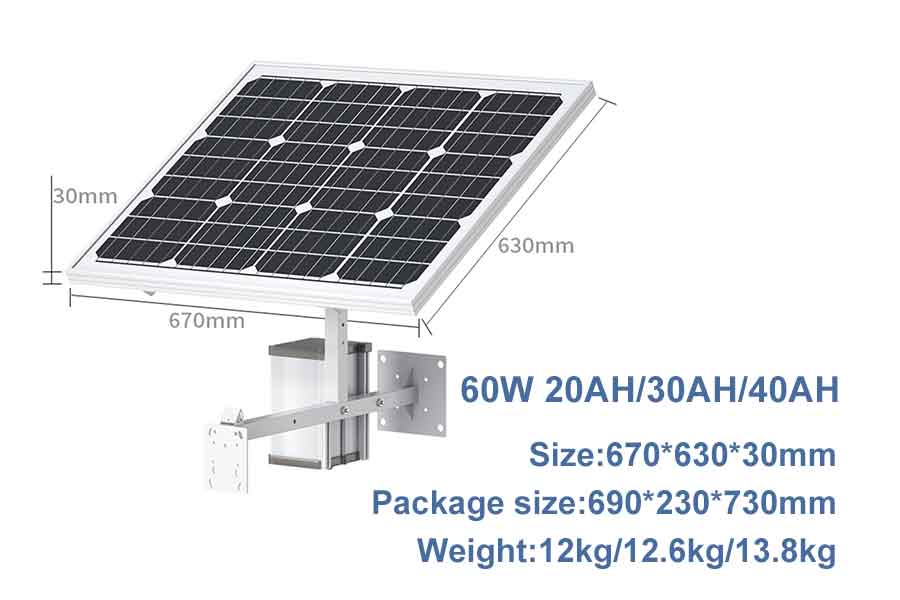

| 60W 20A/30A/40A | 60W brand new A-grade monocrystalline silicon panel, used in national power stations with crystalline silicon battery cells, generating power 10W/hour higher than the market, right angle monocrystalline, peak voltage 18V-22V, anodized aluminum frame, waterproof grade IP66, 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/5A, peak charging current 3.45A, equipped with aluminum alloy battery waterproof box and voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| All aluminum alloy waterproof controller: maximum rated current of 10 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| 20Ah lithium battery with a full load power consumption of 240 watts can provide power for firearms and 2.5-inch ball players for 2 days. | |
| 30Ah lithium battery with a full load power consumption of 360 watts can provide power for firearms and 2.5-inch ball players for 3-4 days. | |
| 40Ah lithium battery with a full load power consumption of 480 watts can provide power for firearms and 2.5-inch ball players for 4-5 days | |

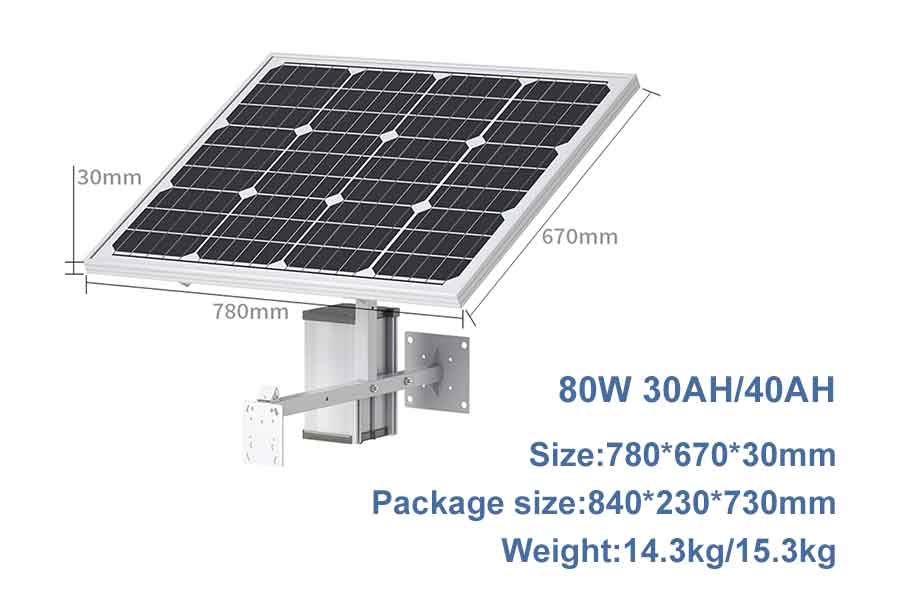

| 80W 30A/40A | 80W brand new A-grade monocrystalline silicon panel, used in national power stations with crystalline silicon battery cells, generating power 10W/hour higher than the market, right angle monocrystalline, peak voltage 18V-22V, anodized aluminum frame, waterproof grade IP66, 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/10A, peak charging current 4.45A, paired with aluminum alloy battery waterproof box and voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| All aluminum alloy waterproof controller: maximum rated current of 10 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| 30Ah lithium battery with a full load power consumption of 360 watts can provide power for firearms and 2.5-inch ball players for 3-4 days. | |
| 40Ah lithium battery with a full load power consumption of 480 watts can provide power for firearms and 2.5-inch ball players for 4-5 days | |

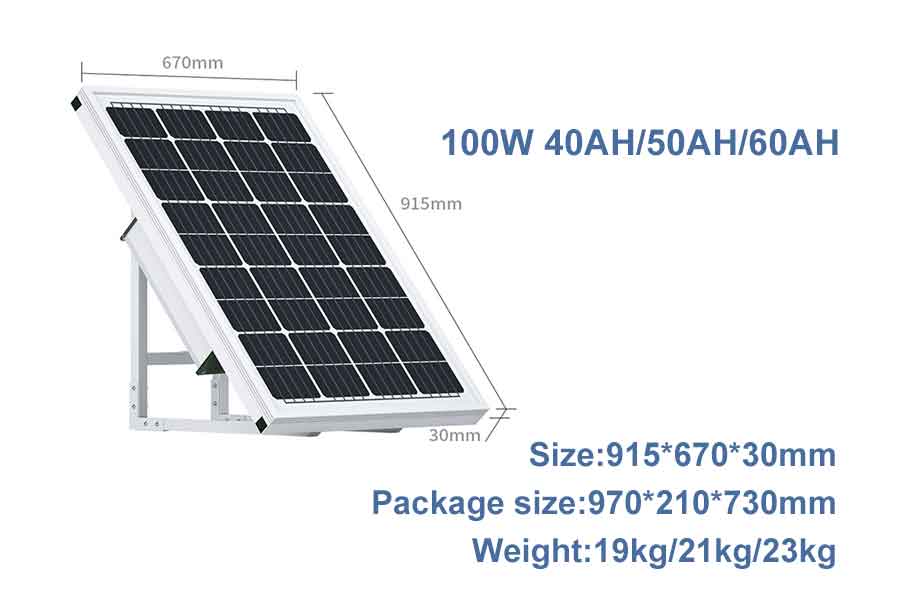

| 100W 40A/50A/60A | 100 watt brand new A-grade monocrystalline silicon panel, crystal silicon battery cells used in national power stations, with a power generation power 10W/hour higher than those on the market, right angle monocrystalline, peak voltage 18V-22V, anodized aluminum frame, waterproof grade IP66, 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/10A, peak charging current 5.6A, equipped with aluminum alloy battery waterproof box and voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| All aluminum alloy waterproof controller: maximum rated current of 10 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| 40Ah lithium battery with a full load power consumption of 480 watts can provide power for a 5-inch ball machine for 2-3 days. | |
| 50Ah lithium battery with a full load power consumption of 600 watts can provide power for a 5-inch ball machine for 3-4 days. | |
| 60Ah lithium battery with a full load power consumption of 720 watts, powered by a 5-inch ball machine for 4-5 days. | |

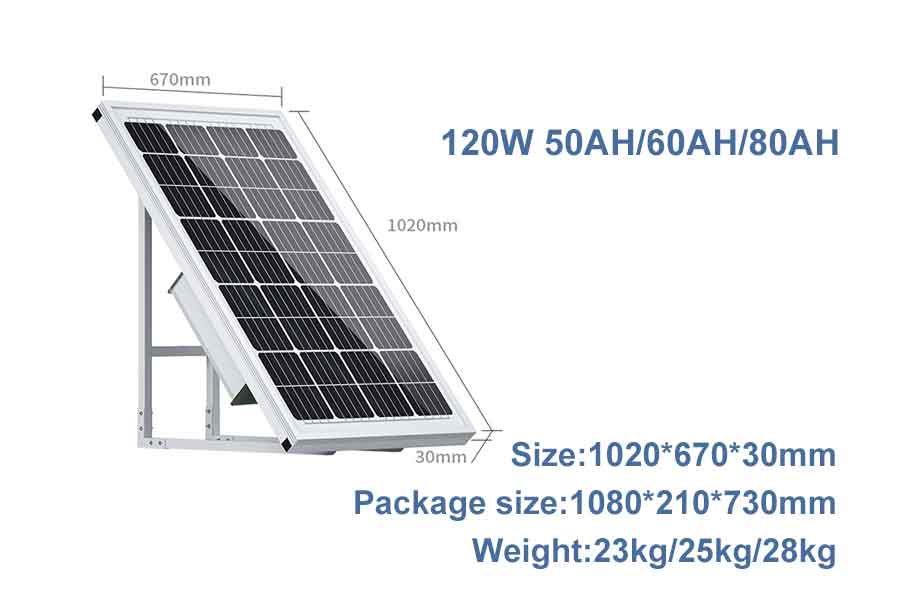

| 120W 50A/60A/80A | 120W brand new A-grade monocrystalline silicon panel, used in national power stations with crystalline silicon battery cells, generating power 10W/hour higher than the market, right angle monocrystalline, peak voltage 18V-22V, anodized aluminum frame, waterproof grade IP66, 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/10A, peak charging current 6.6A, equipped with aluminum alloy battery waterproof box and voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| All aluminum alloy waterproof controller: maximum rated current of 10 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| 50Ah lithium battery with a full load power consumption of 600 watts can provide power for a 5-inch ball machine for 3-4 days. | |
| 60Ah lithium battery with a full load power consumption of 720 watts, powered by a 5-inch ball machine for 4-5 days. | |
| 80Ah lithium battery with full load power consumption of 960 watts, 5-inch ball machine powered for 5-6 days. | |

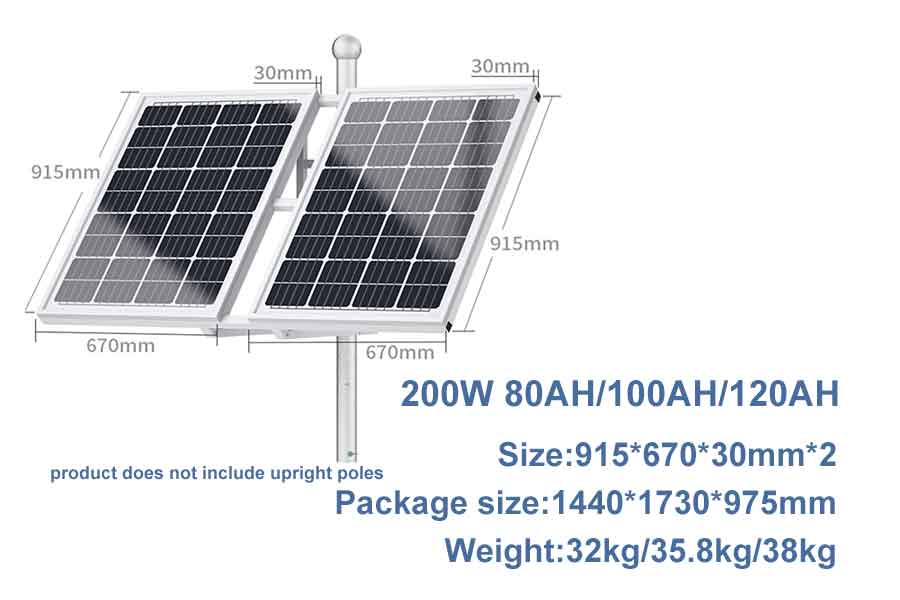

| 200W 80A/100A/120A | 200 watt brand new A-grade monocrystalline silicon panel, used in national power stations with crystalline silicon battery cells, generating power 10W/hour higher than the market, right angle monocrystalline, peak voltage 18V-22V, anodized aluminum frame, waterproof grade IP66, 25 year linear power guarantee; |
| Lithium battery: ternary lithium, brand new A 18650 battery cells, temperature: -30 ° C -60 ° C high temperature, can cycle charge and discharge 800 times, full charge voltage is 12.6V; Maximum load output: 12V/10A, peak charging current 11.2A, matched with distribution box size of 300 * 400 * 200mm, and equipped with voltage display screen, output 12V, DC interface diameter 2.1 * 5.5mm; | |
| All aluminum alloy waterproof controller: maximum rated current of 20 amperes; | |
| Painted bracket, corrosion-resistant, equipped with U-shaped clamps; | |
| Two 100W solar panels; | |
| 80Ah lithium battery with full load power consumption of 960 watts, 1 gun machine, 1 network bridge, 1 ball machine, standby for 3-4 days in cloudy and rainy weather. | |
| 100Ah lithium battery with full load power consumption of 1200 watts, 2 gun guns, 1 network bridge, and 1 ball machine, standby for 4-5 days in rainy and cloudy weather. | |
| 120Ah lithium battery with full load power consumption of 1440 watts, 2 gun guns, 1 network bridge, 1 ball machine, standby for 6-7 days in cloudy and rainy weather. |
