| model | |
| Network video input | 8channel |
| HDoutput | 1channel, resolution: 1024 x768, 1280 x1024, 1366 x768, 1440 x900, 1920 x1080, support audio output |
| H.264/H.265 | |
| Audio | G711A, |
| Resolution | 5MP/3MP/1080P/720P |
| Synchronous playback | 4channel@3MP/2channel@5MP |
| Video mode | Timing video, event video |
| Playback modes | Scheduled playback and event playback |
| Backup mode | U disk backup |
| One SATA port | Support up to 6TB hard disk（2.5-inch），up to 256 GB SD cards， cloud storage |
| WIFI | WIFI 2.4G(IEEE802.1b/g/n) |
| Two 2.4g integrated antennas | |

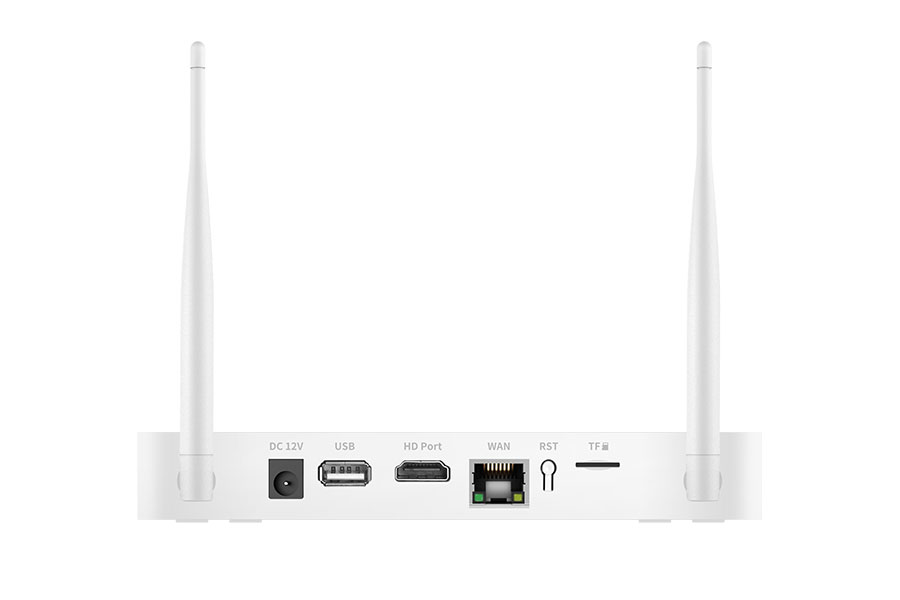

| Network interface | One RJ45 10M/100M adaptive Ethernet port with built-in wireless Internet access function |
| USB interface | 1 USB2.0 |

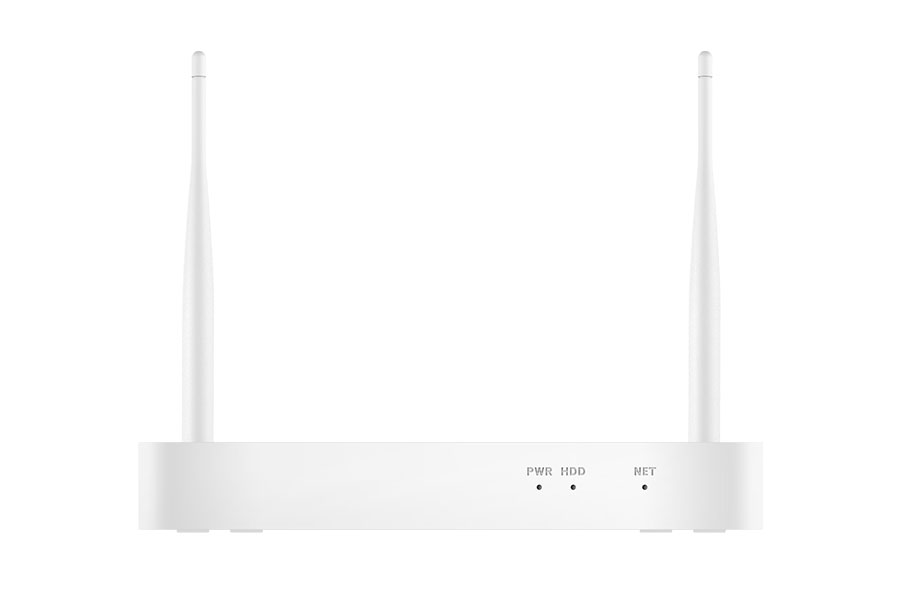

| Video light | 1 video lamp, indicating video status |
| Network lamp | One network indicator, indicating the P2P status |
| Button | One reset button |
| Power | DC12V/2A |
